Proud to be NZ's Dealer For Red Centre Caravans

BUILT STRONG

FINISHED BEAUTIFULLY

From heavy-duty construction and independent suspension to superior insulation and build quality, every Red Centre Caravan is engineered for durability, stability, and comfort.

Select Your Model

Select Size & Layout

Let’s

Design

It!

Tandem Axle Models

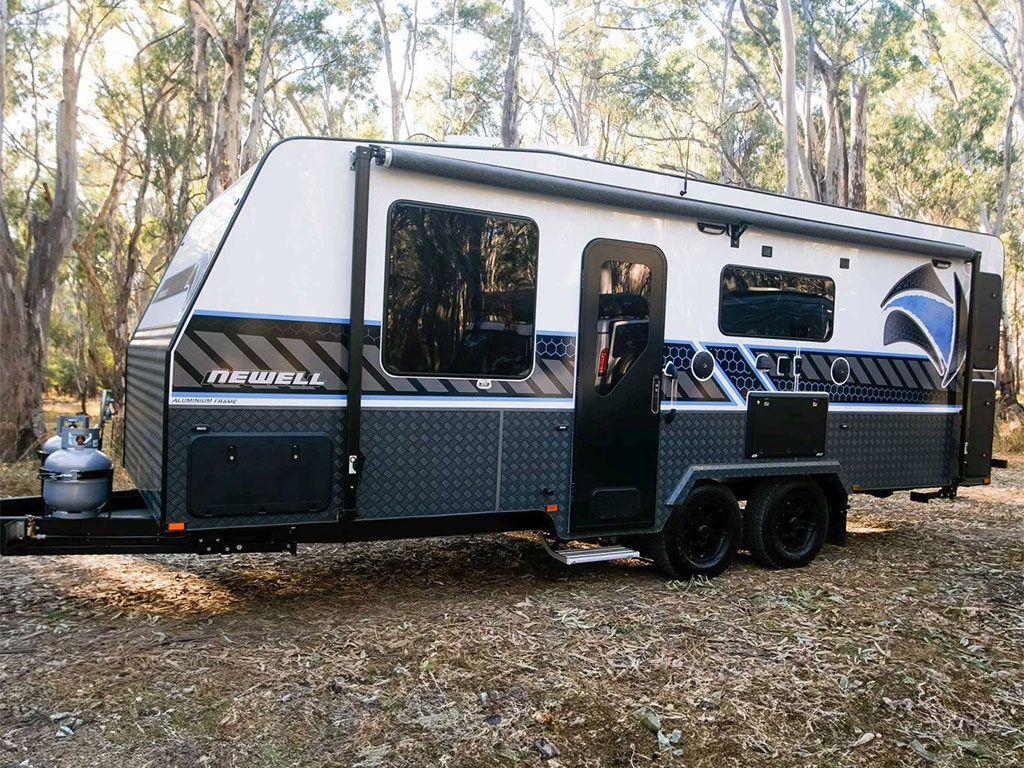

Newell On-Road

It all starts with the Newell, which includes the standard interior and exterior features of all Red Centre Caravans. The Newell is designed for those who love to enjoy the comfort of their home while exploring caravan parks, with the flexibility for occasional freedom camping.

Price from $142,000

Fitout
Electrical
Plumbing
Chassis

- AM/FM radio
- 2 x internal speakers & 2 x external speakers
- 24 inch TV
- Rollout awning
- Double glazed windows
- Roof hatches with inbuilt LED lights
- Security screen mesh door
- Adjustable external hatches
- Picnic table
- CNC cut interlocking furniture
- Ball bearing drawer slides with soft close feature
- Gas struts on all overhead cupboard doors
- Oversize drawer and cupboard faces
- Post form rolled edge bench tops
- Full height splashback
- Pillowtop innerspring mattress
- Full ensuite
- Ceramic toilet bowl
- Ceramic hand basin
- Stainless steel sink
- Flick mixer taps
- Café, L shaped or club lounge configurations available for seating area
- Footrests on couch
- Linen cupboard
- Large 2 door, 3 way fridge freezer
- Gas / electric hot water unit
- 12V rangehood
- 3 x gas and 1 x electric cooktop
- Mini grill
- Full gas oven
- Microwave
- Top load washing machine
- Reverse cycle air conditioner
- 2 x 9 kg gas bottles
- External gas bayonet
- Reverse camera

Victron Battery Management System
1 x 200w solar panel
1 x 120 a/hr AGM deep cycle battery
Battery mounted on the chassis
30amp MPPT solar controller
30amp battery charger
LED lighting inside and out
LED taillights
LED external grab handle
Reading lights throughout van
12V USB sockets either side of bed and at dining table
Double power points throughout
Digital water tank displays
1 x Grey Anderson plug
1 x Red Anderson plug
External 240V outlet
External 12V outlet
External TV bracket & aerial point
TV antenna

2 x 95 litre water tanks
Tap on A Frame (fully protected)
Mains pressure inlet with limiting valve
Manifold water filter system
12V pump

100% Australian designed and engineered chassis using Australian steel
6 inch drawbar
4 inch main chassis
2 inch riser
2.9T rocker suspension with 10″ brakes
All terrain tyres
Ball coupling
ALKO ESC (Electronic Stability Control)
Breakaway system
12 pin flat trailer plug
Jockey wheel
2 arm rear bar
4 x drop down legs
Protection for water tanks
Mesh in A Frame
Aluminium Framing
Alucomp sides, front and rear (Hail resistant)
Checkerplate lower sides and front
Full composite panel 1 piece roof (Hail resistant, rot proof)
Full composite insulated floor
Fully insulated walls

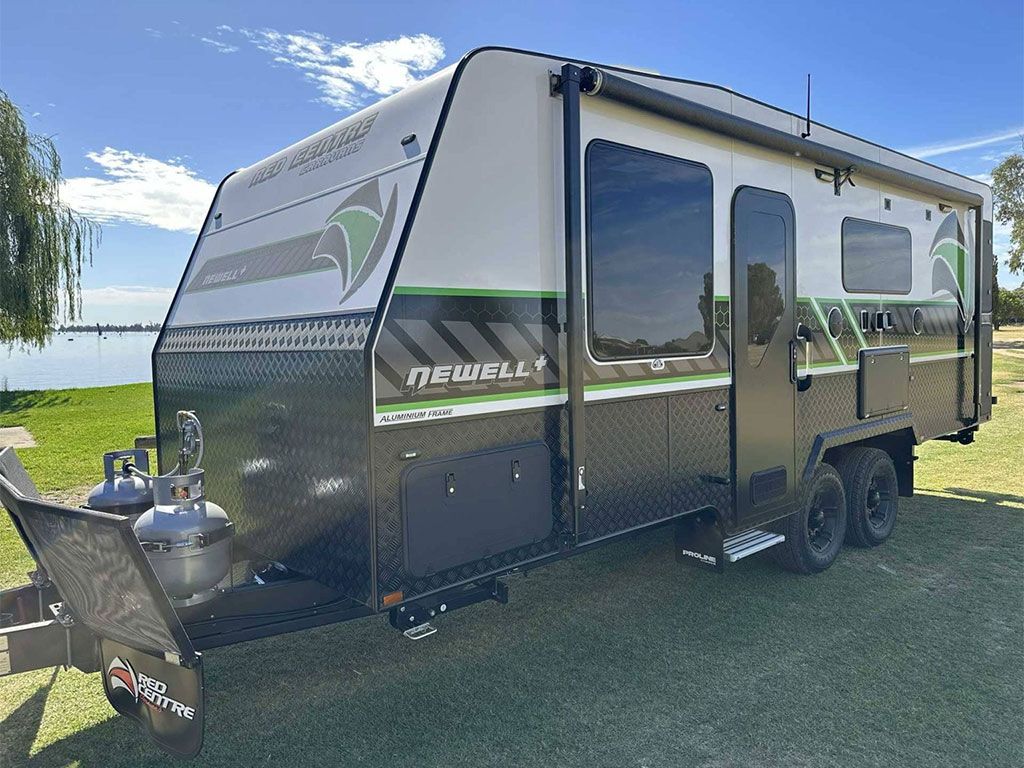

Newell+ Off-Road

Embrace the freedom to roam the great outdoors with the Newell Plus. With all-terrain tyres and additional protection for water tanks, the Newell Plus is as rugged as it is luxurious.

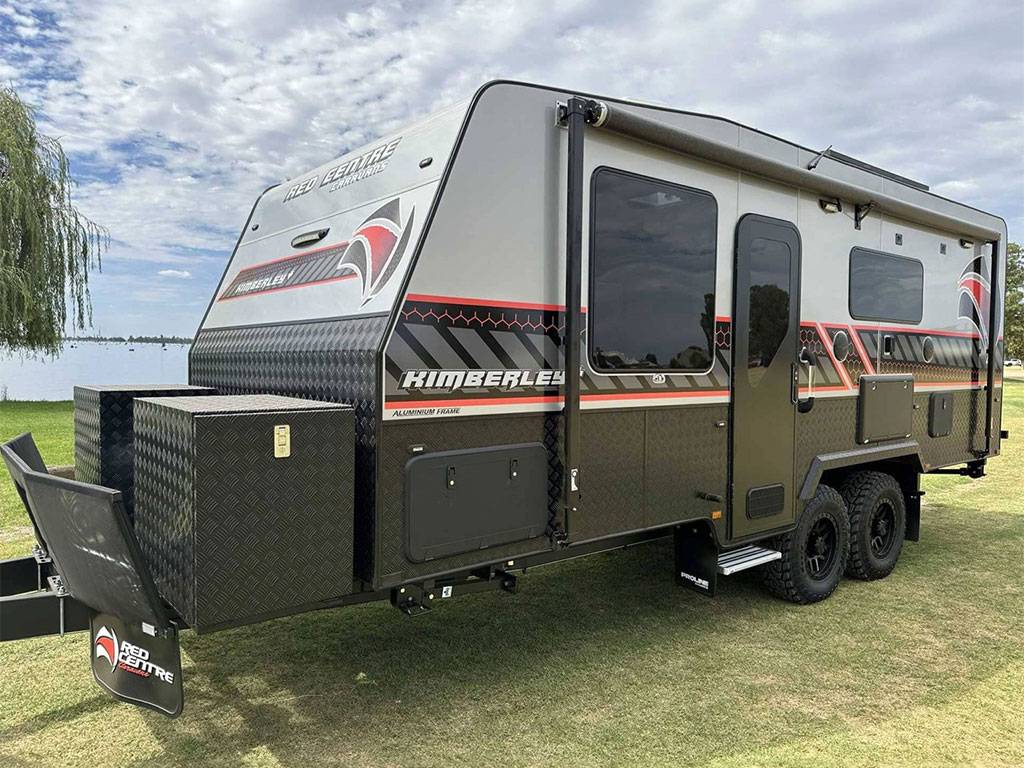

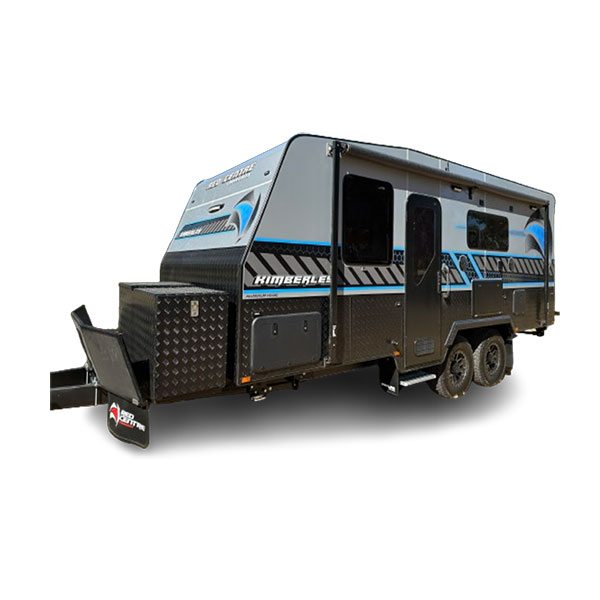

Kimberley+ Off-Road

The premier choice for adventurers aiming to conquer the untamed wilderness, the Kimberley Plus Off-Road range features durable aluminium frames and advanced off-road features, engineered for resilience and performance.

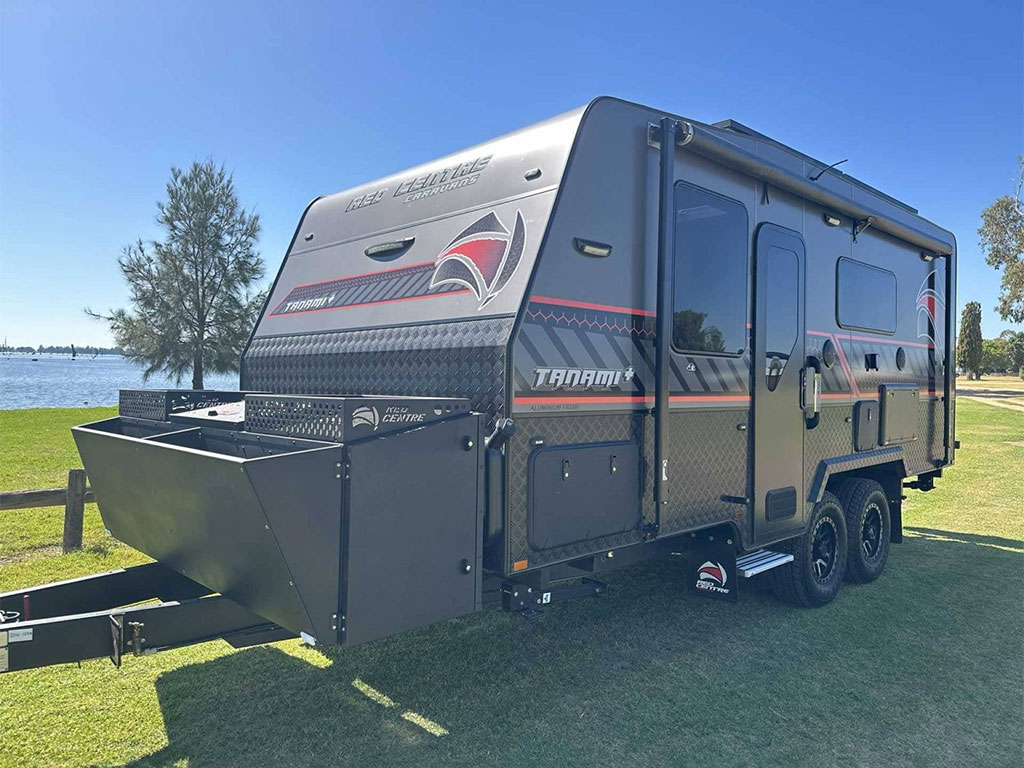

Tanami+ Off-Road

The Tanami Plus Extreme Off-Road Caravan is acknowledged as the best off-road caravan. It features state-of-the-art components and materials to ensure safety, comfort, and durability in the most challenging environments.

Price from $149,000

Newell+ Additional Features

All standard features of the Newell with these additional features:

3.5T independent touring suspension with 12″ brakes
Pull-out step
2 x 200W solar panels
2 x 120 A/Hr AGM battery
Pressure hatch
Recessed tow hitch
DO35 off road coupling
3 x 95 litre water tanks

Price from $155,000

Kimberley+ Additional Features

All Newell+ additional features as well as:

Drawbar extension
4 inch riser
Recessed strip lighting in kitchen, dinette & ensuite
Stone deflector
LED from and rear worklights
Checkerplate sides front & rear
External entertainers hatch
Fully protected plumbing
Toolbox with slide (doorside)
2 x 120 A/Hr Lithium batteries
Victron micro touch battery management system with DC-DC 30 amp DC-DC charger
Toolbox for generator (roadside)
Toolbox (doorside) with two slides
3 arm rear bar
2 x Jerry Can holders
3 x 200W solar panels
Compressor fridge / freezer
TV entertainment box
2 x Sirocco fans
Filtered drinking water
External shower
External entertainers hatch

Price from $169,000

Tanami+ Additional Features

All Kimberey+ additional features as well as:

6″ main chassis
Raptor coated drawbar
Fully integrated toolboxes
4.2T fully independent off-road dual shock suspension with disc brakes
4 arm rear bar
Checkerplate protection for water tanks
2nd set of LED tail lights up high
Light above tunnel boot
Offside rope rail rack
Instantaneous hot water system
Gas / diesel heater
2 x 200 a/Hr Lithium batteries
Victron Micro Touch Plus battery management system
3000 VA inverter
Smart TV

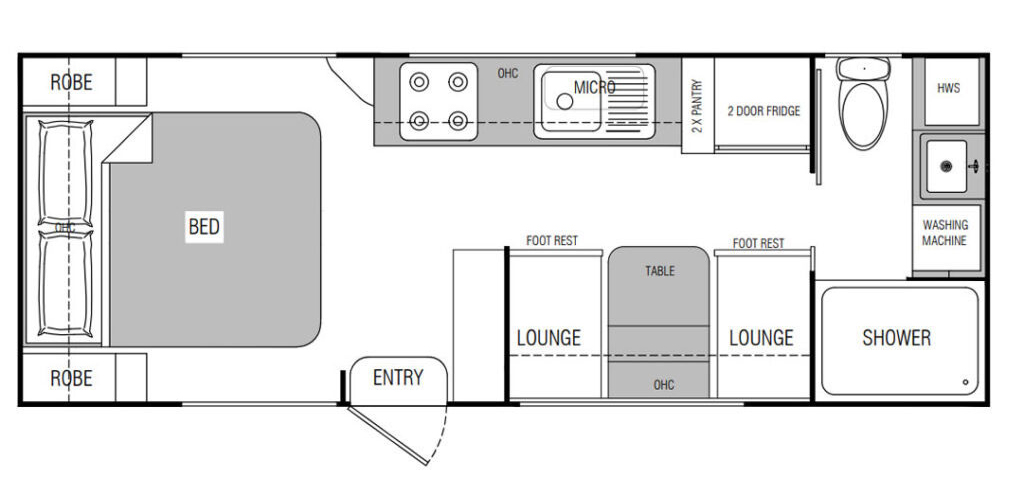

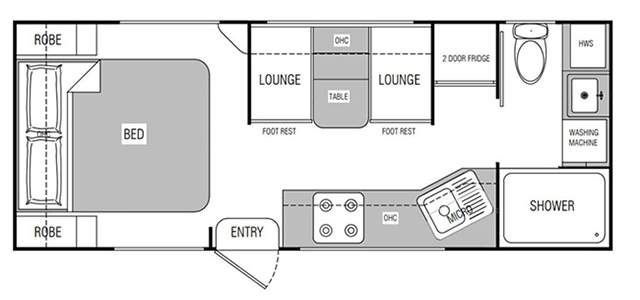

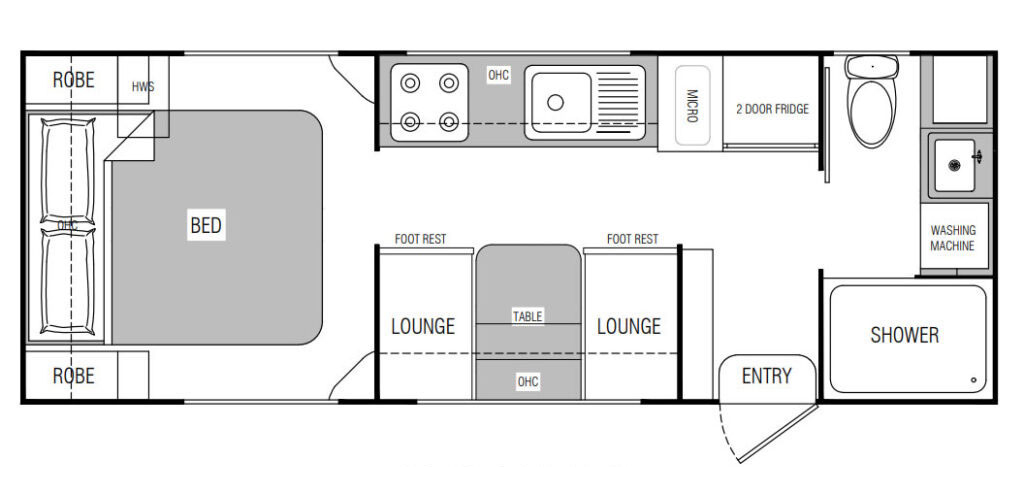

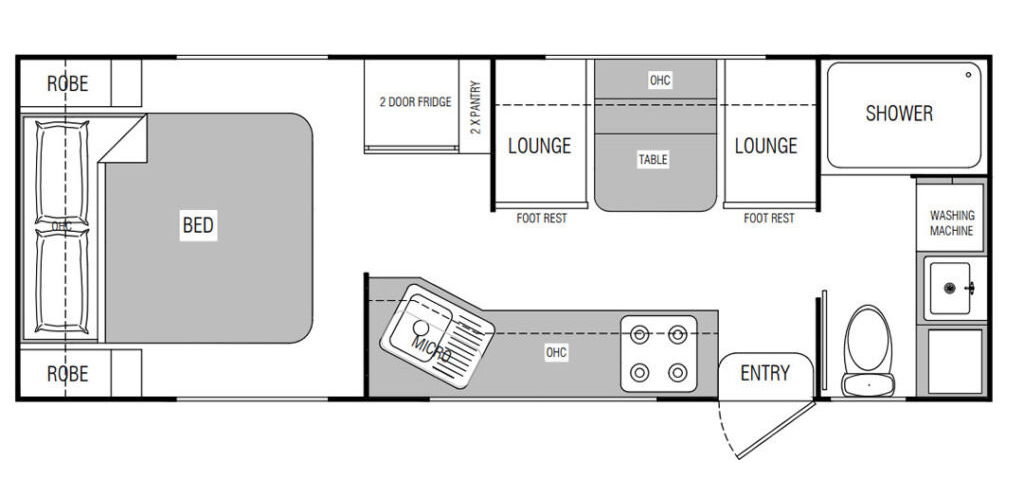

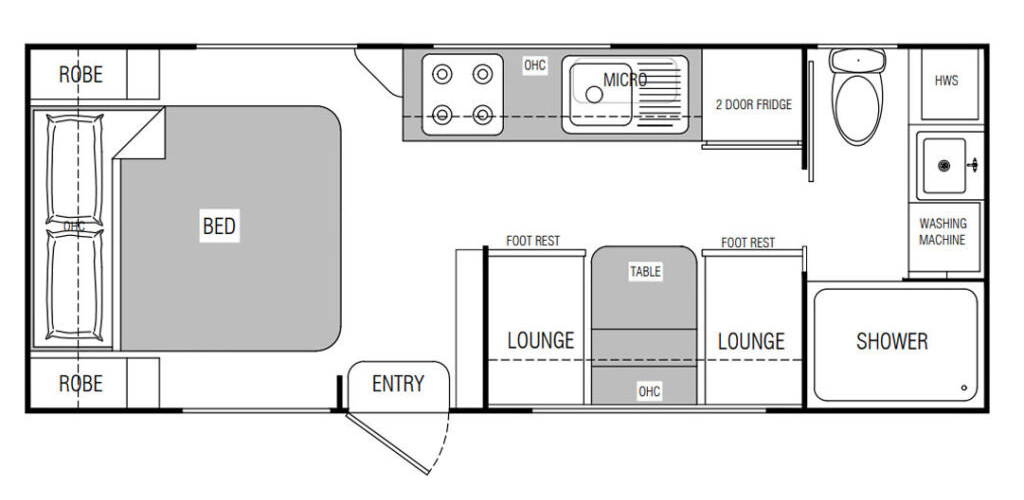

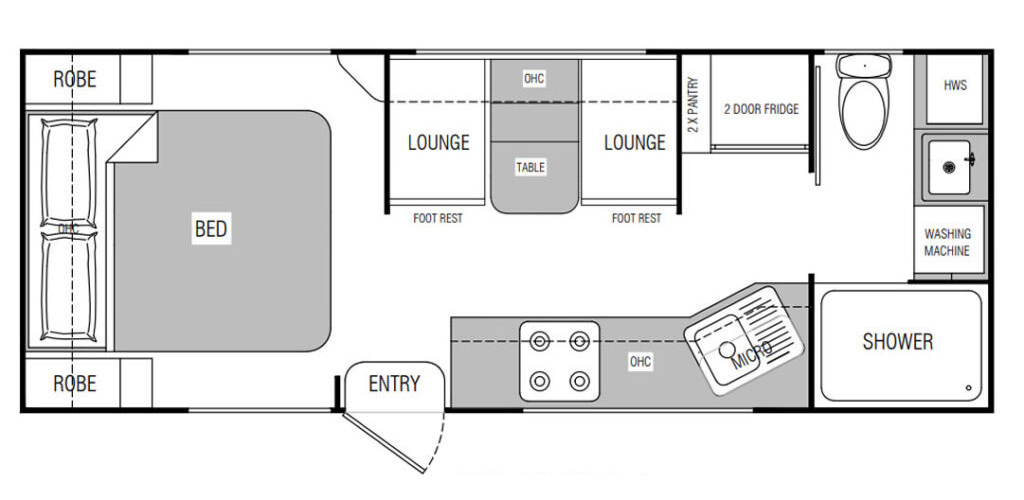

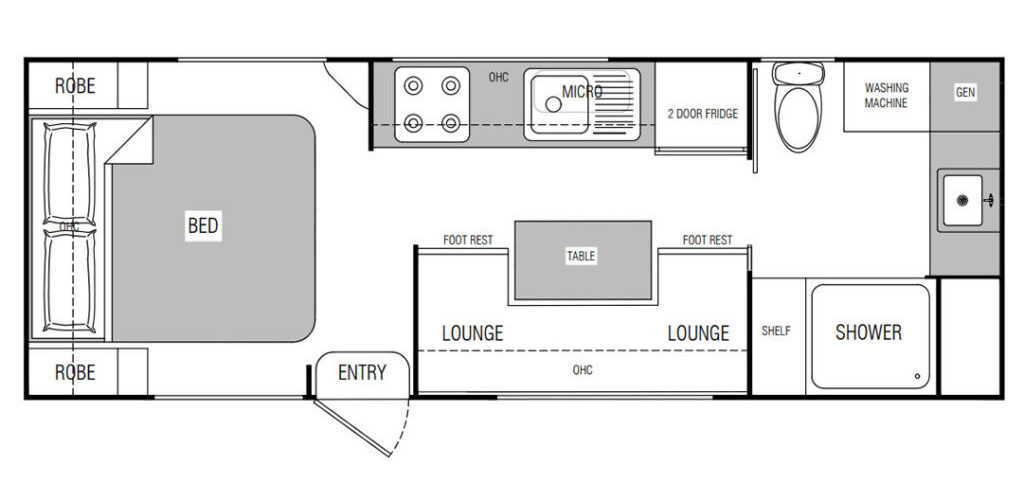

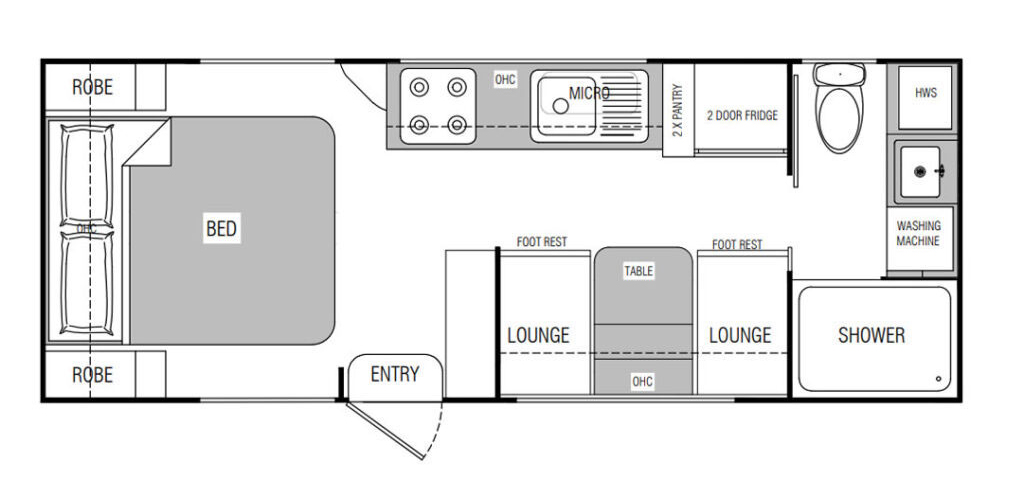

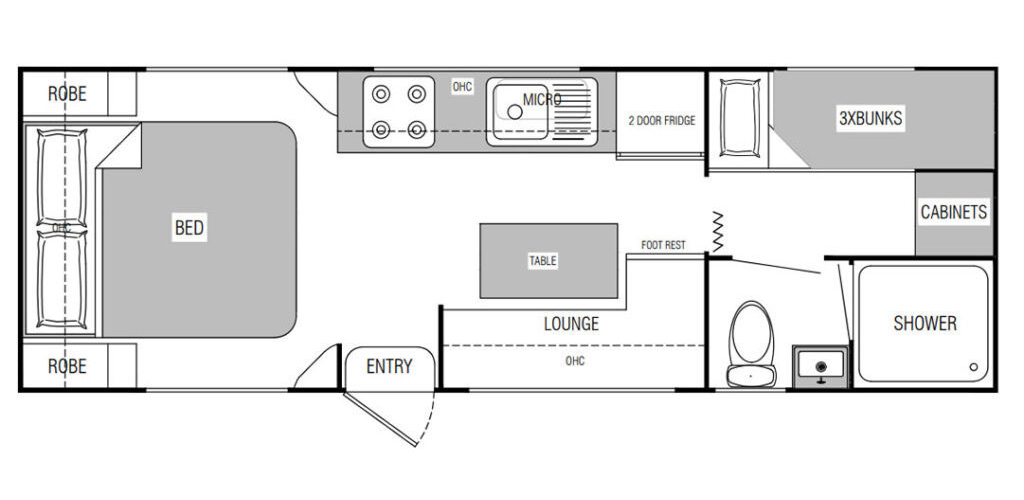

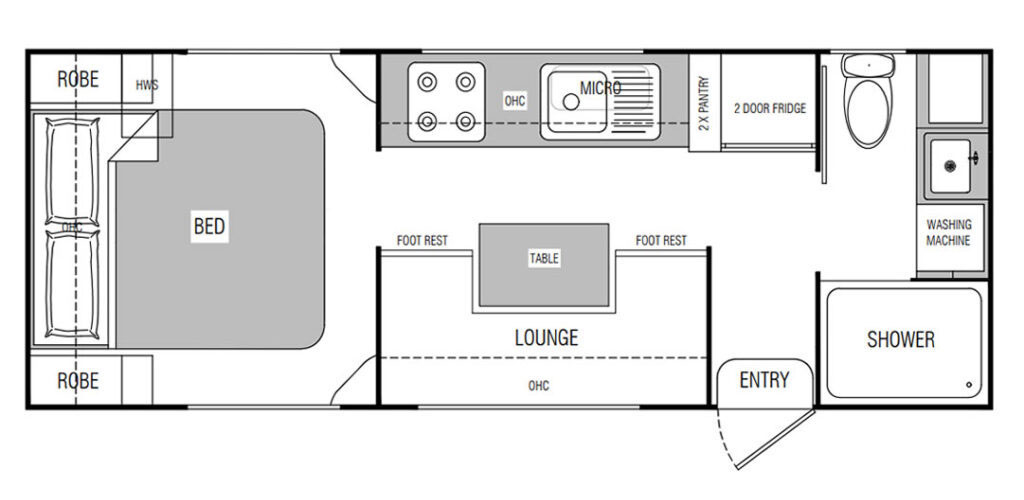

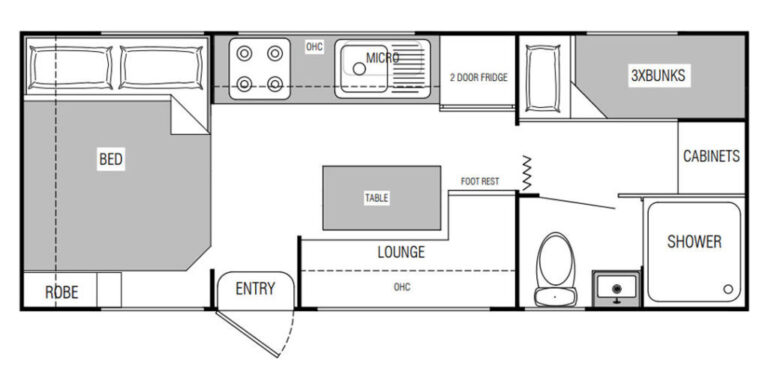

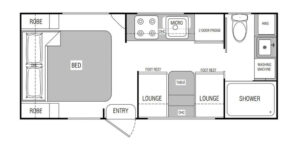

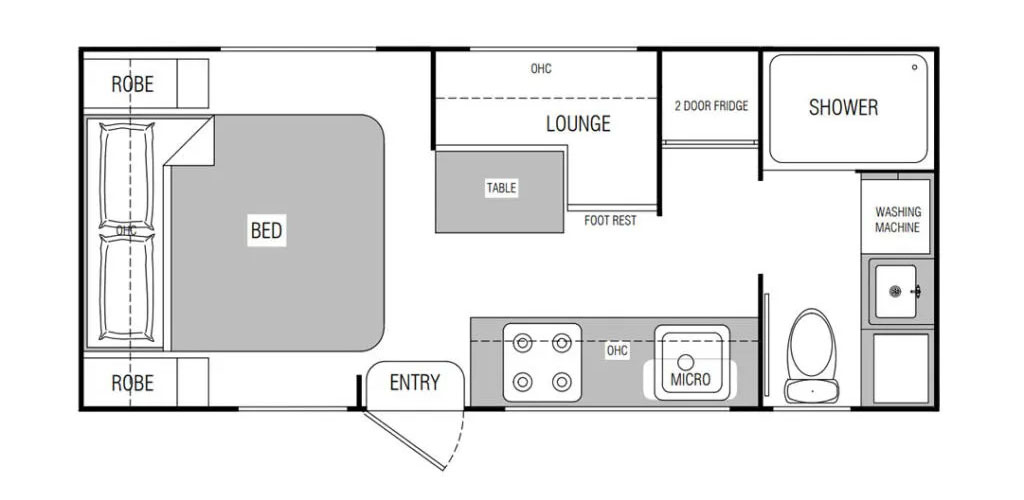

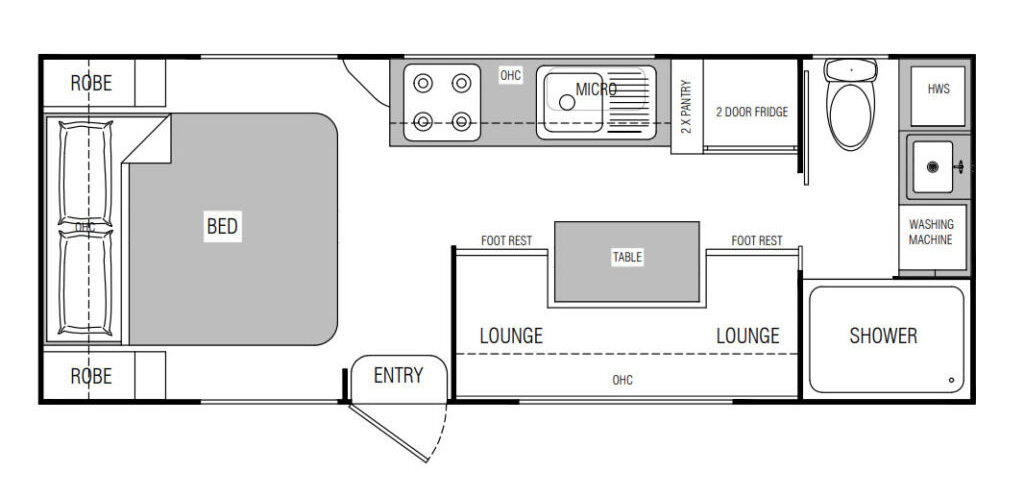

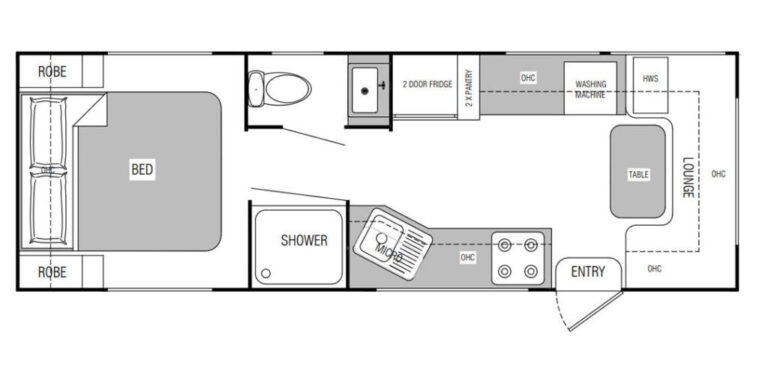

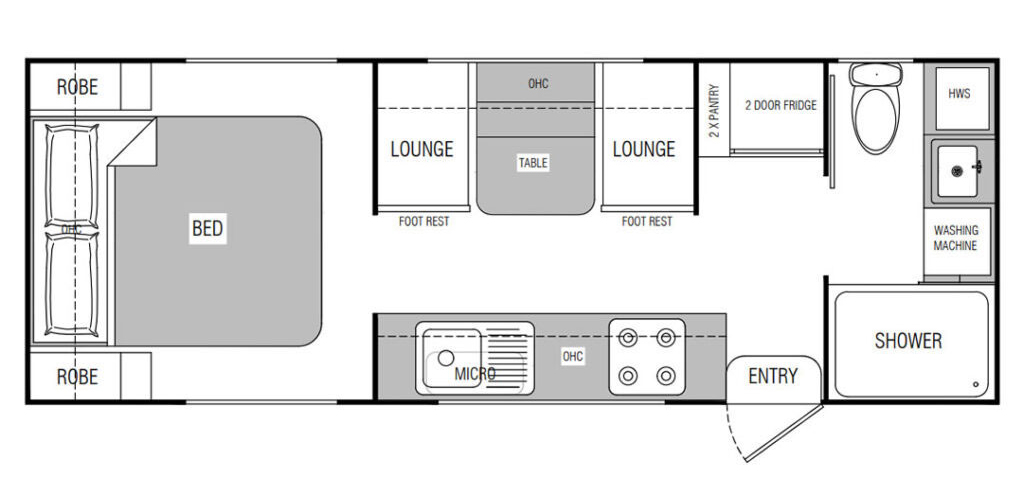

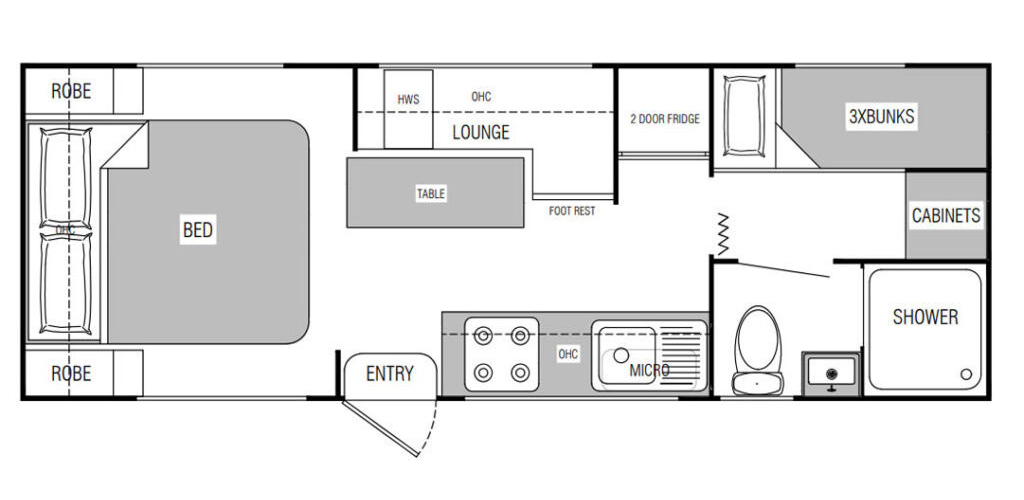

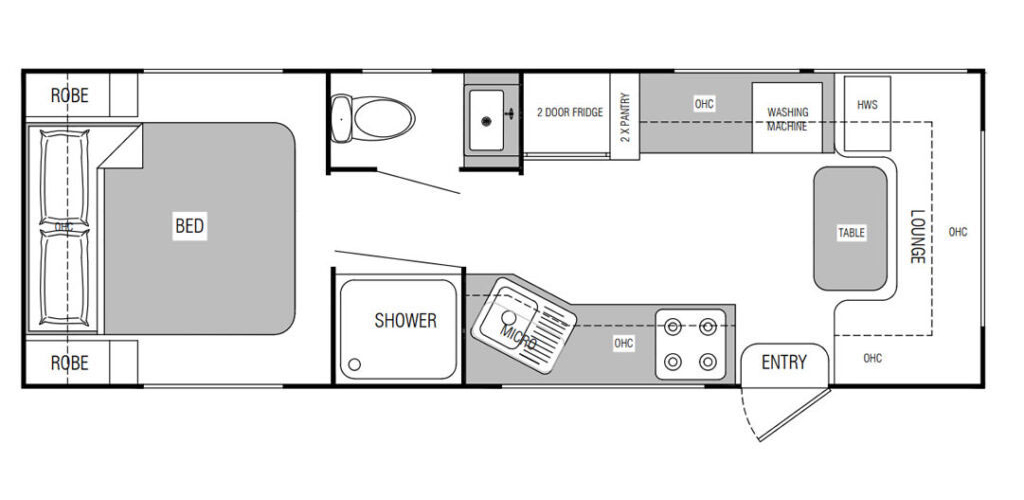

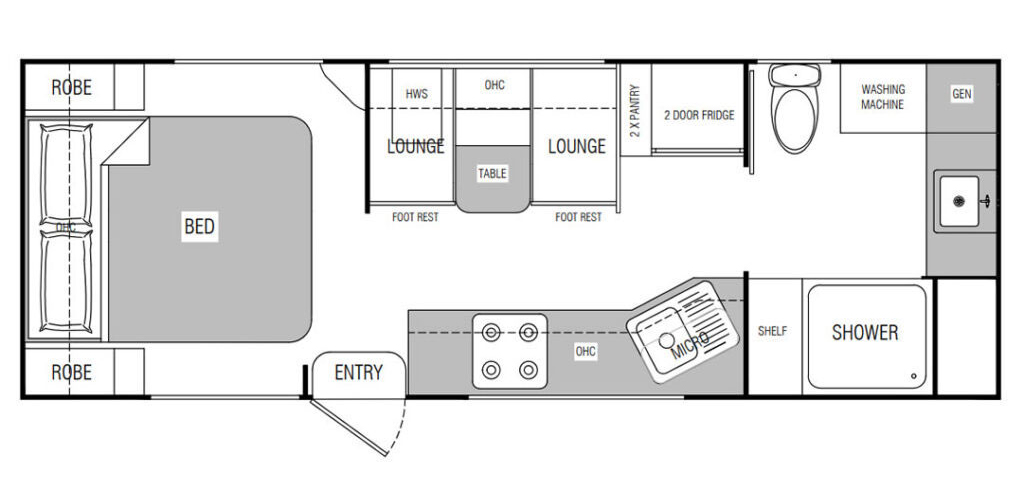

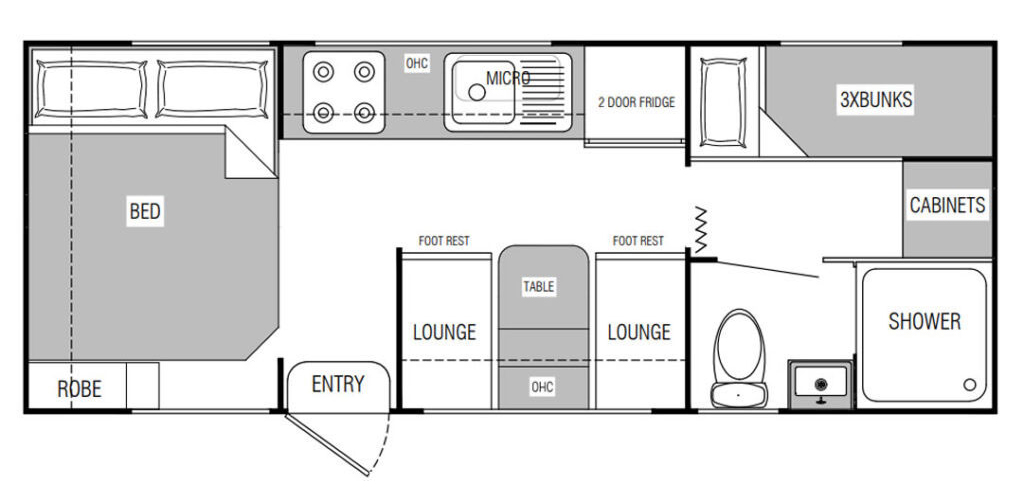

Tandem Axle Layouts

Standard

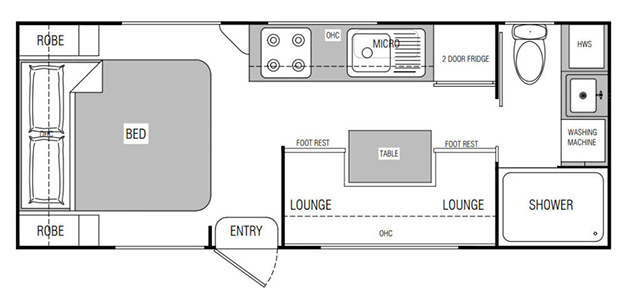

Club Series

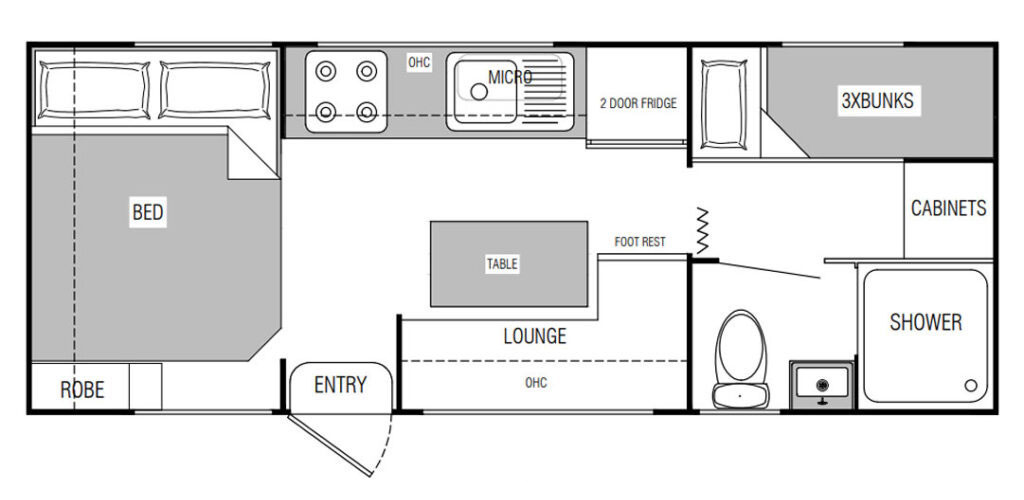

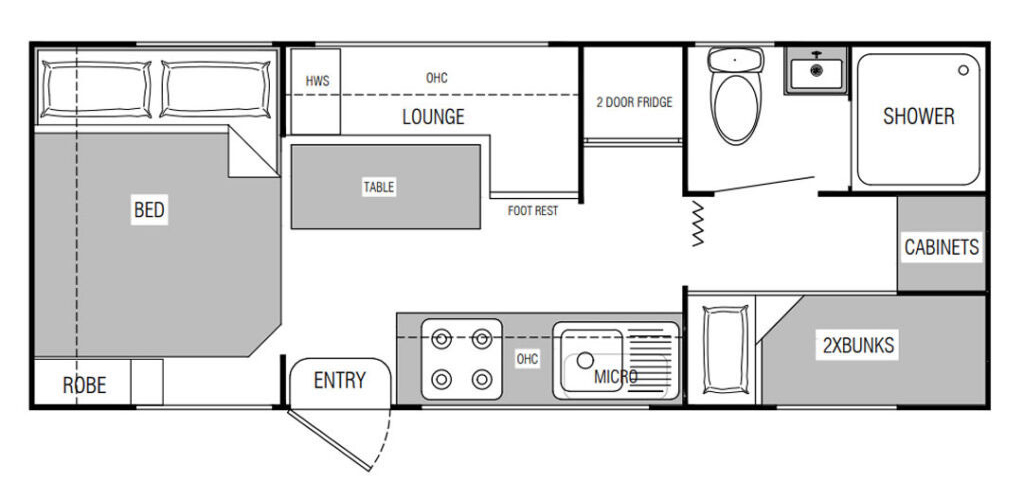

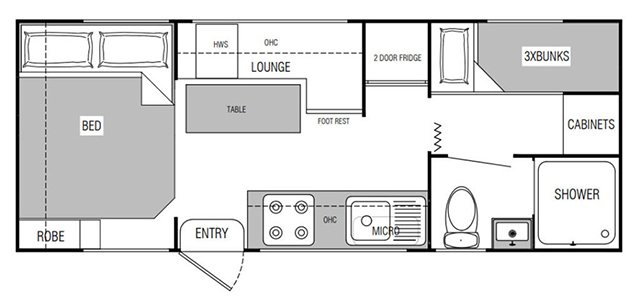

Family

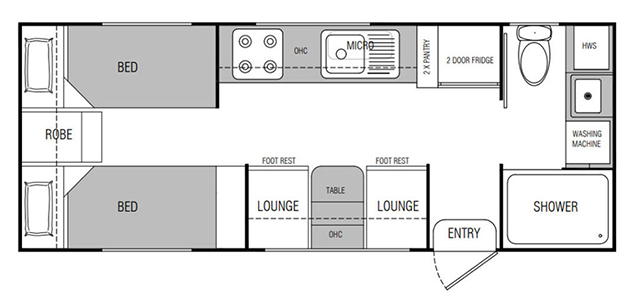

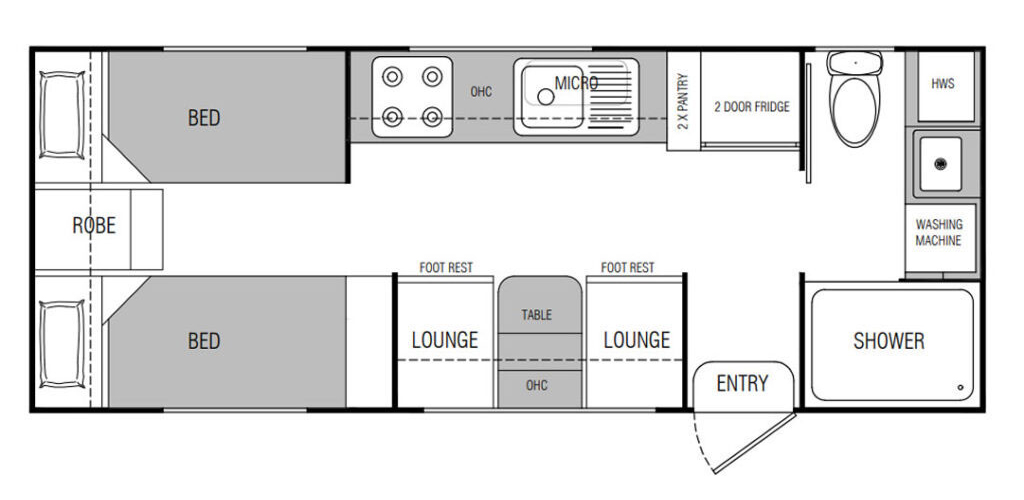

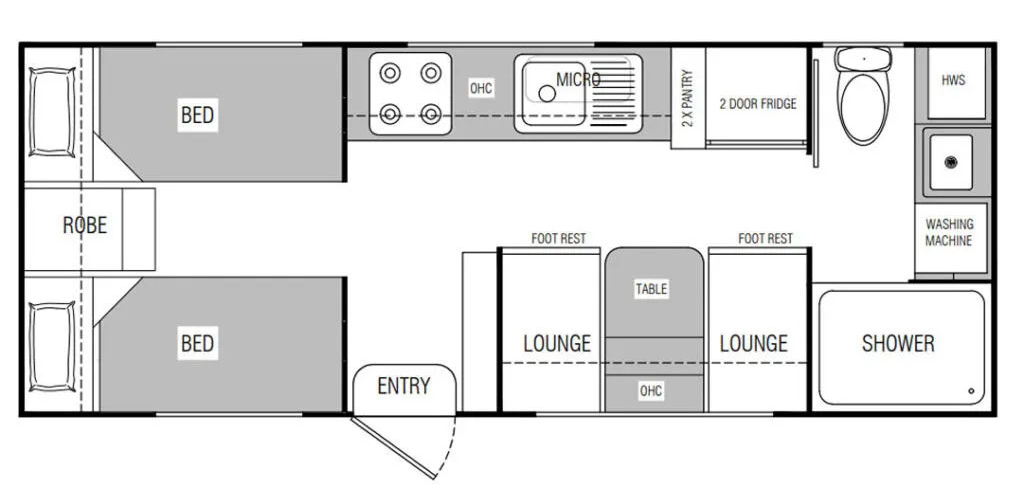

Single Beds

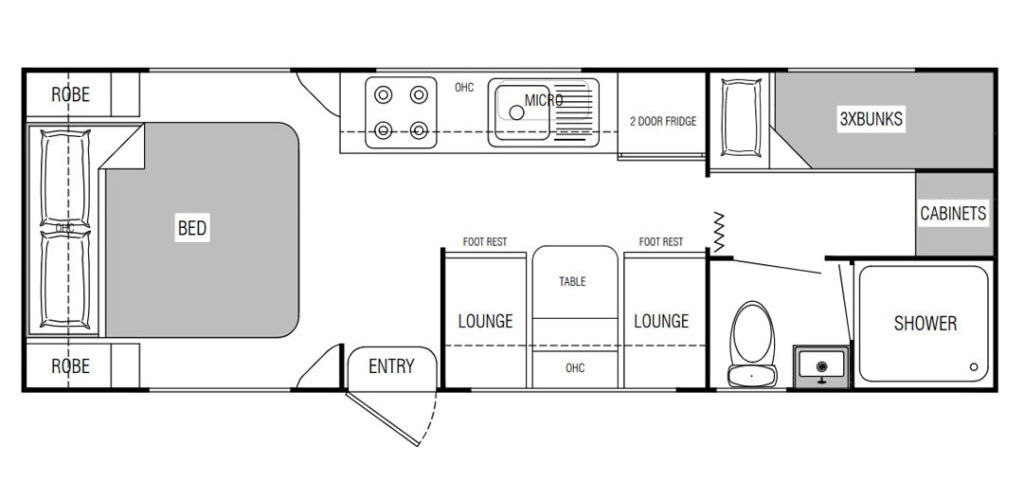

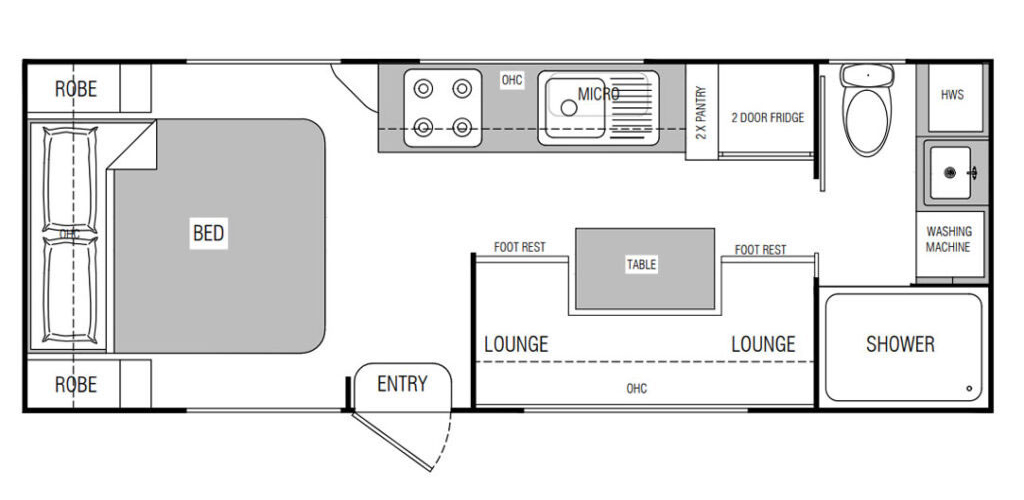

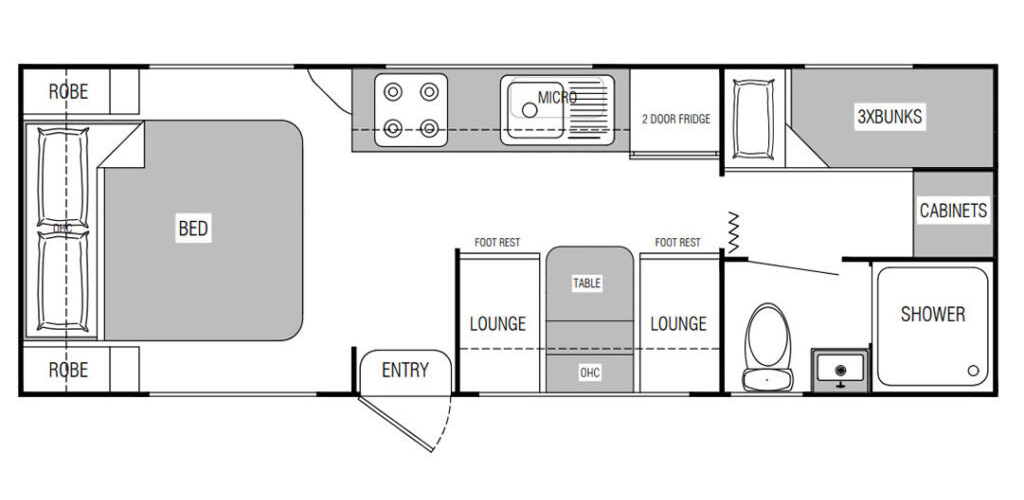

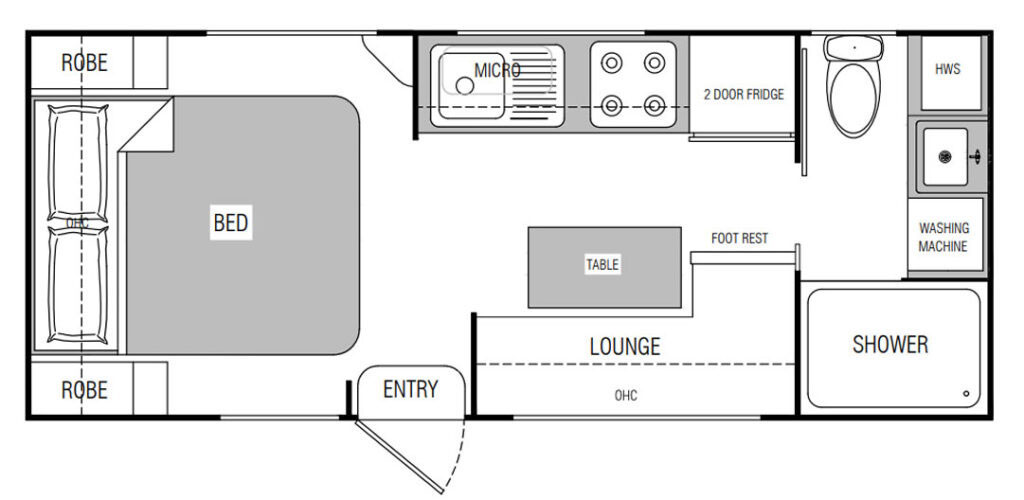

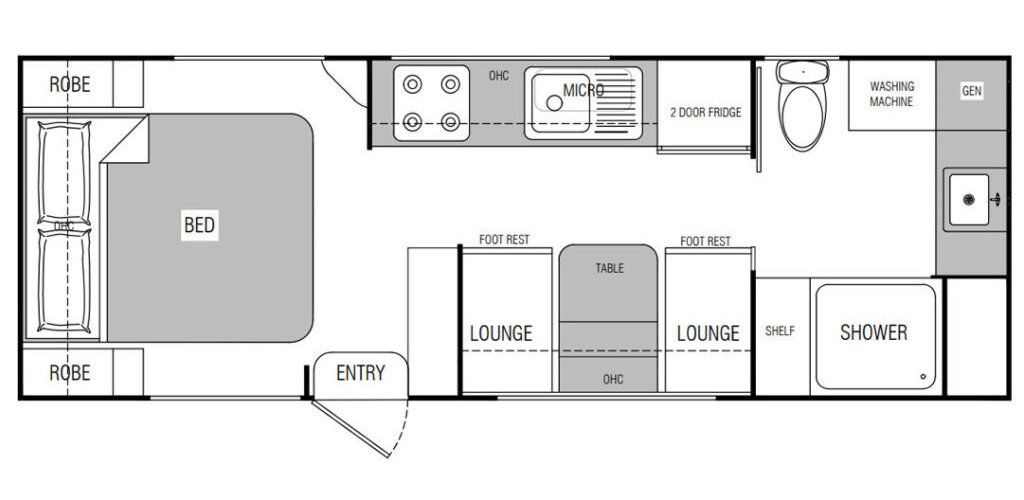

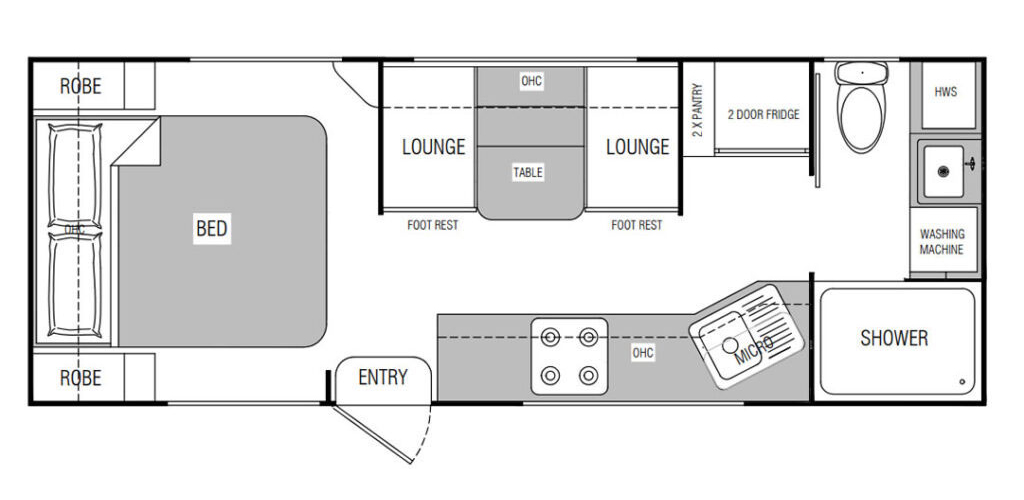

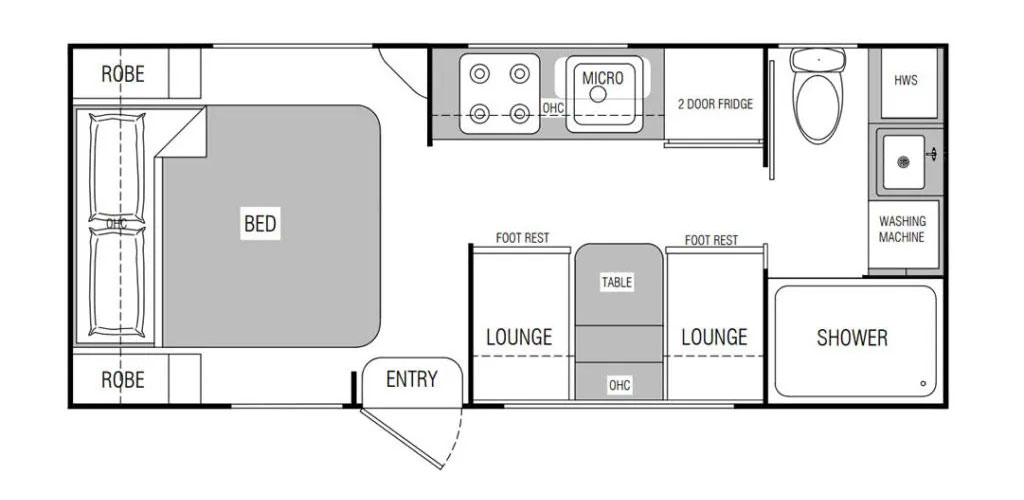

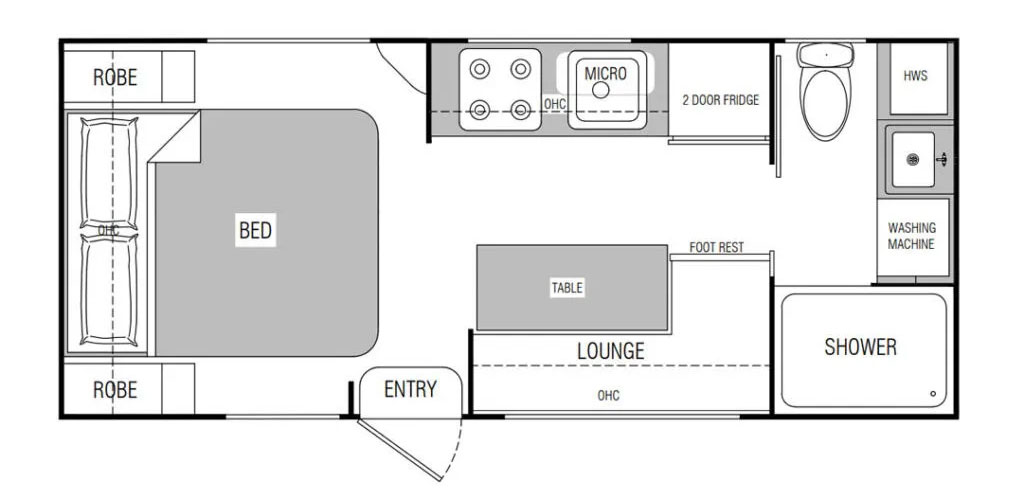

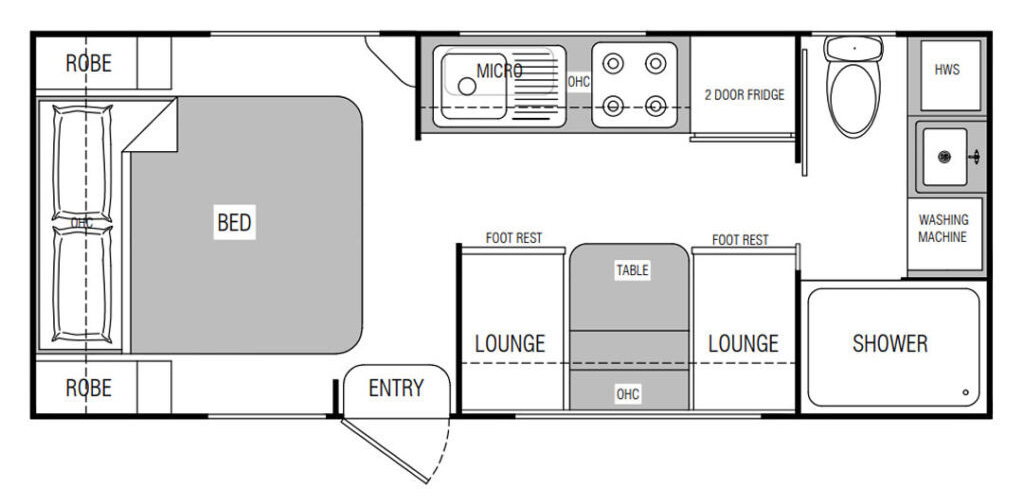

: 18′ 6″ Type B

: 18′ 6″ Type C

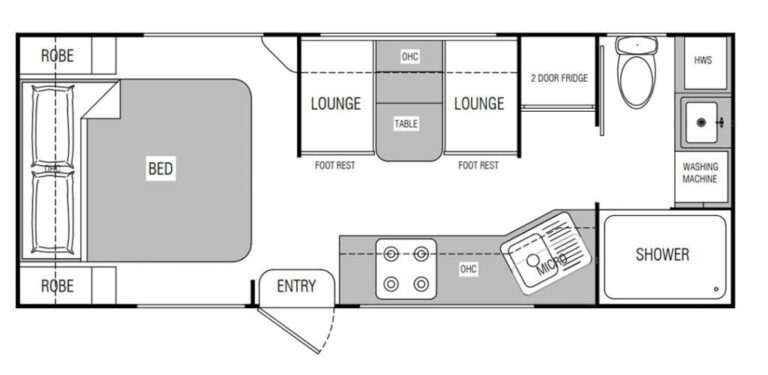

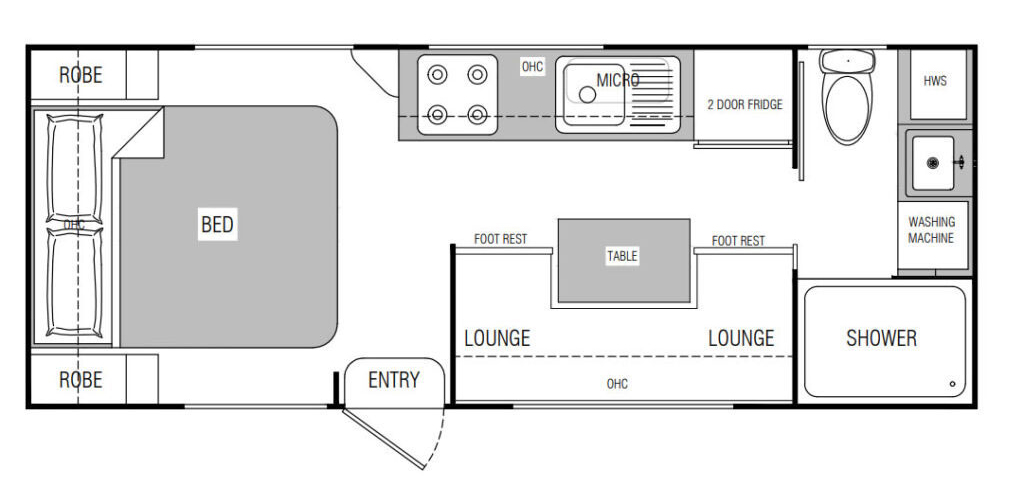

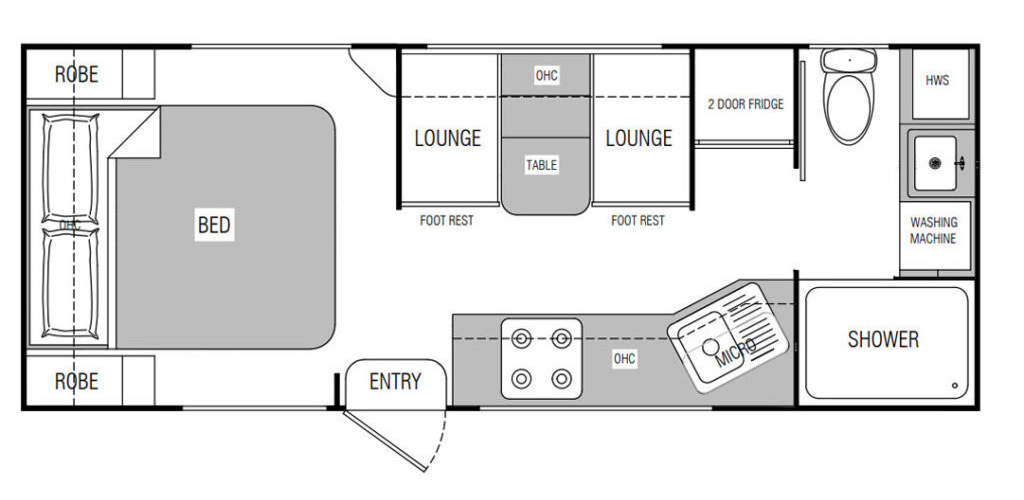

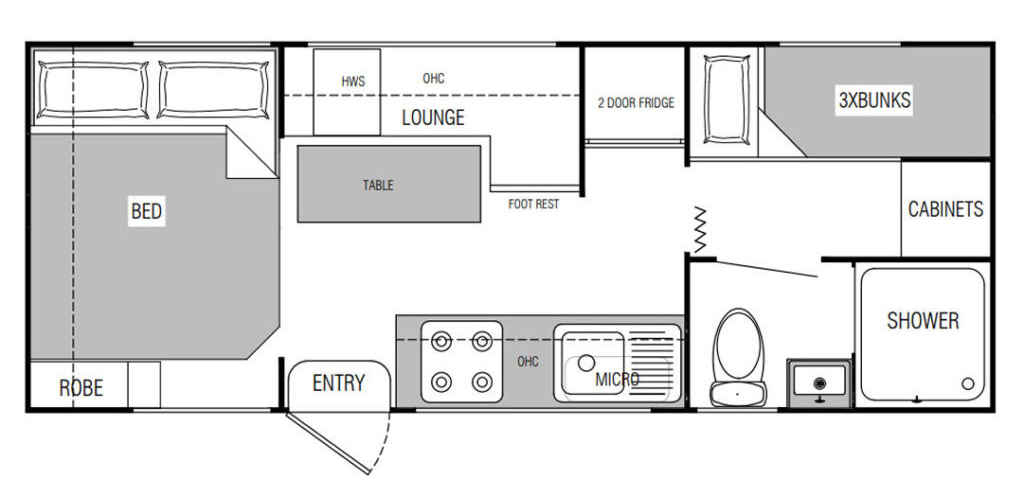

: 19′ 6″ Type A

: 19′ 6″ Type C

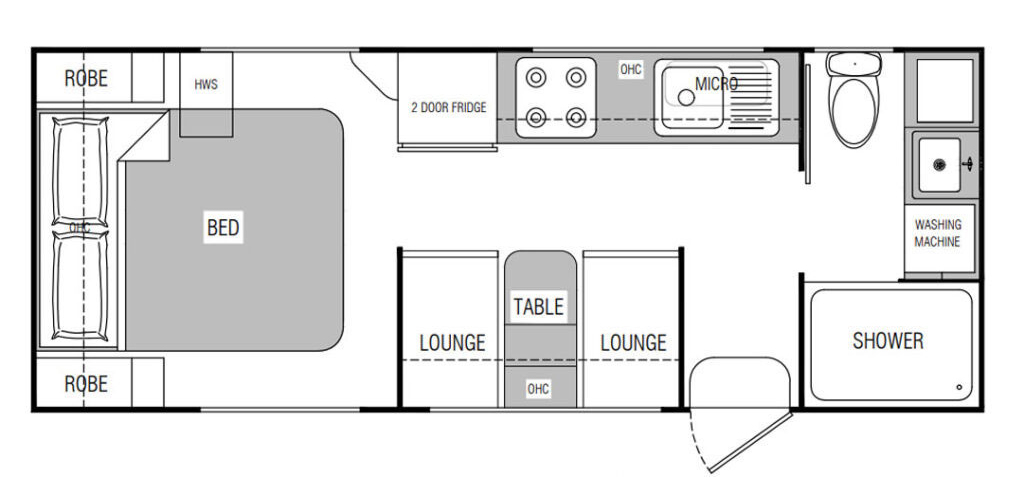

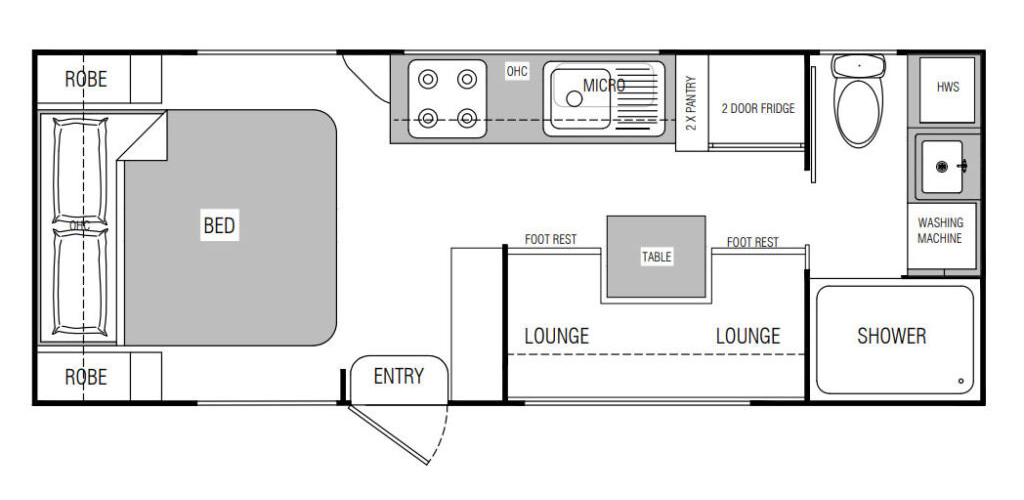

: 19′ 6″ Type G

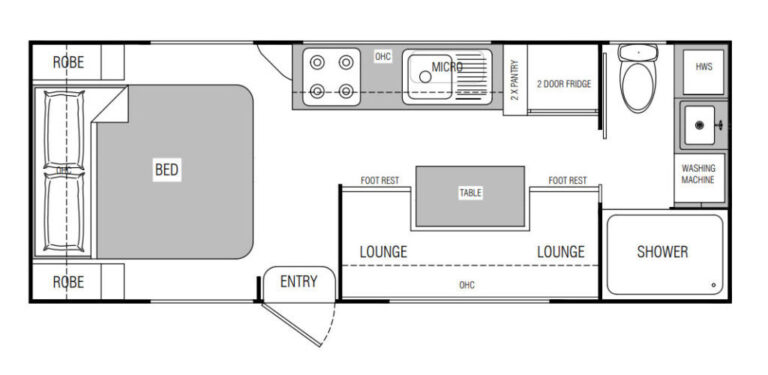

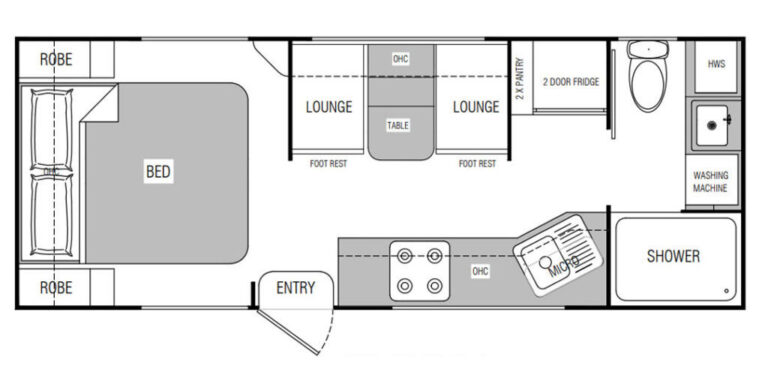

: 20′ Type A

: 20′ Type C

: 20′ 6″ Type A

: 20′ 6″ Type C

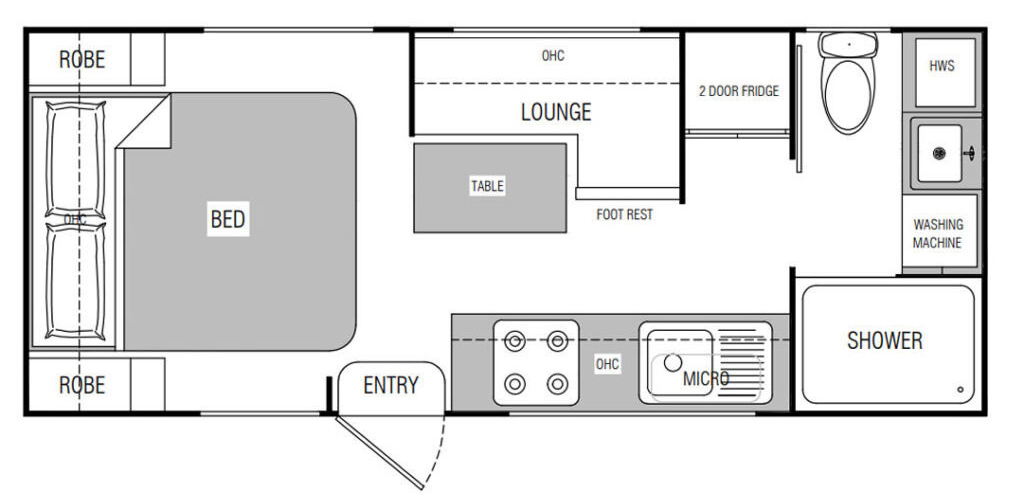

: 20′ 8″ Type A

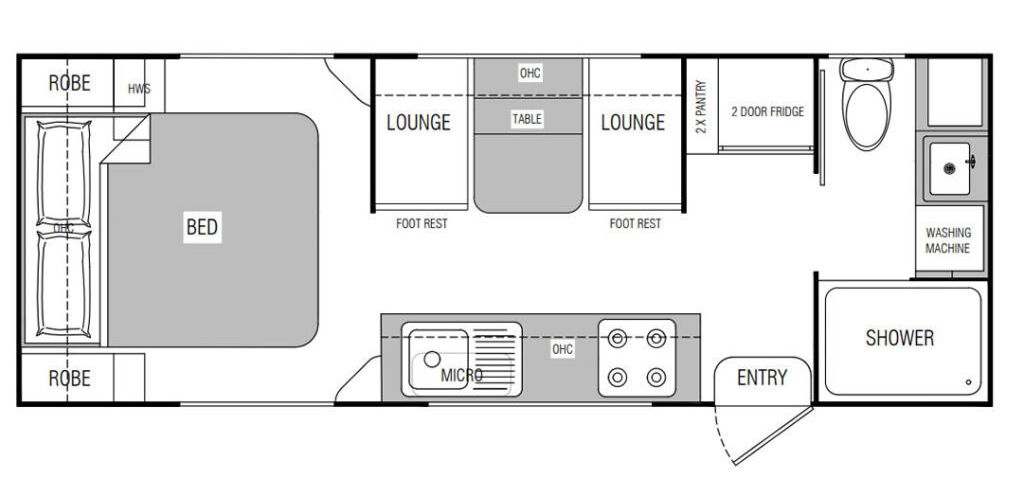

: 20′ 8″ Type B

: 20′ 8″ Type C

: 21′ Type D

: 21′ Type E

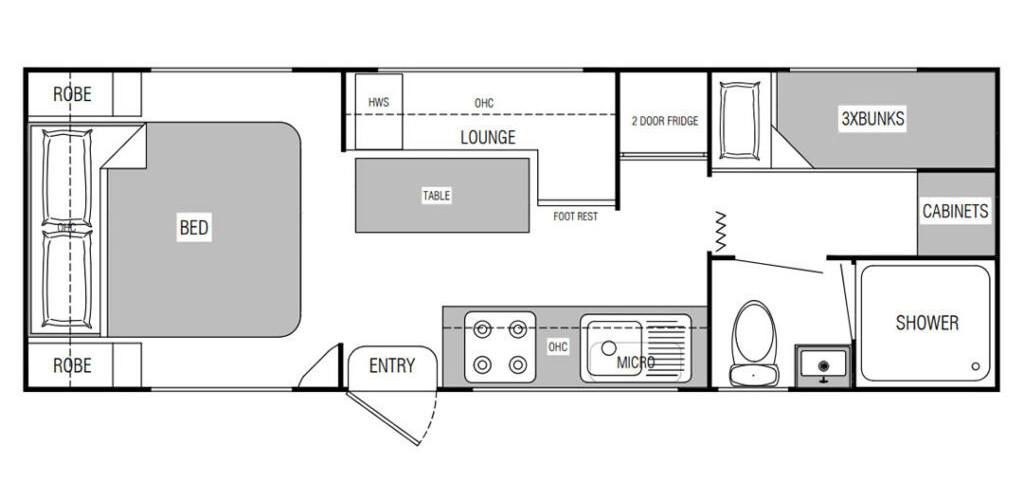

: 21′ 6″ Type A

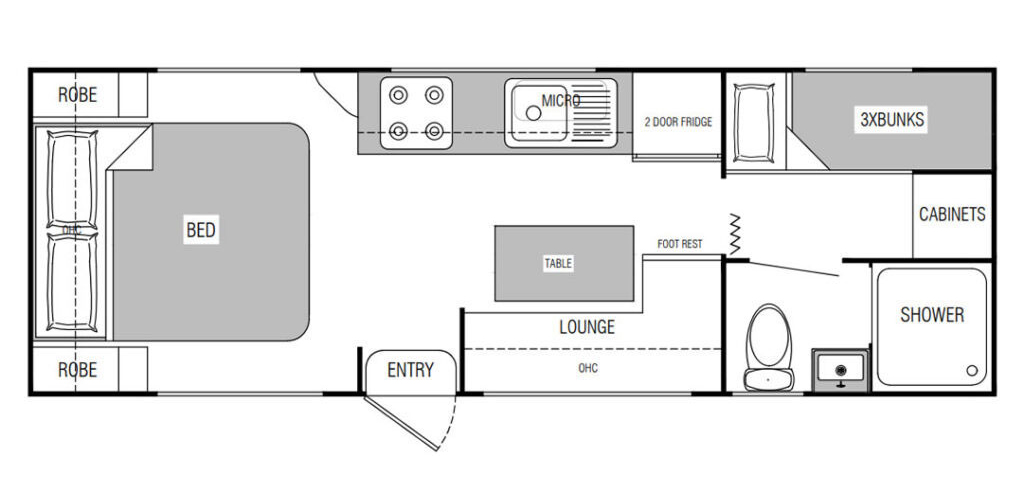

: 21′ 6″ Type C

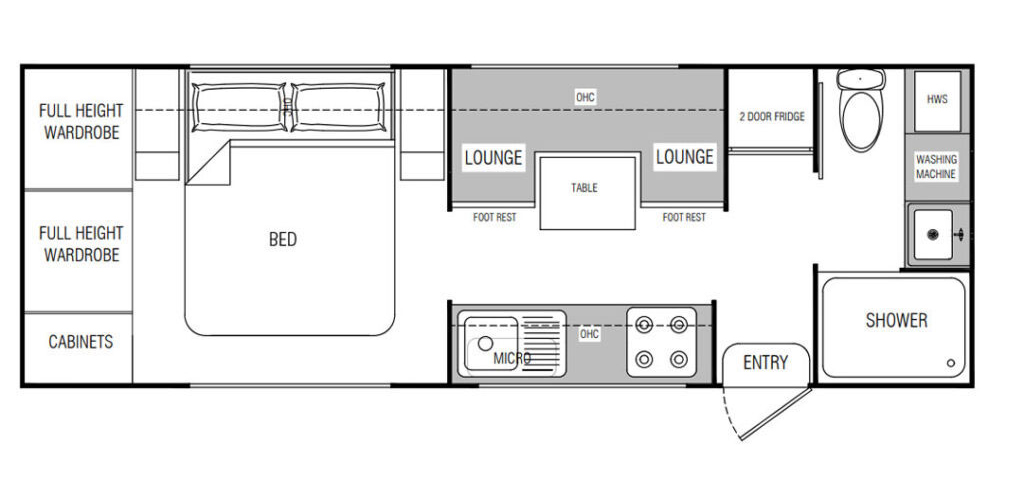

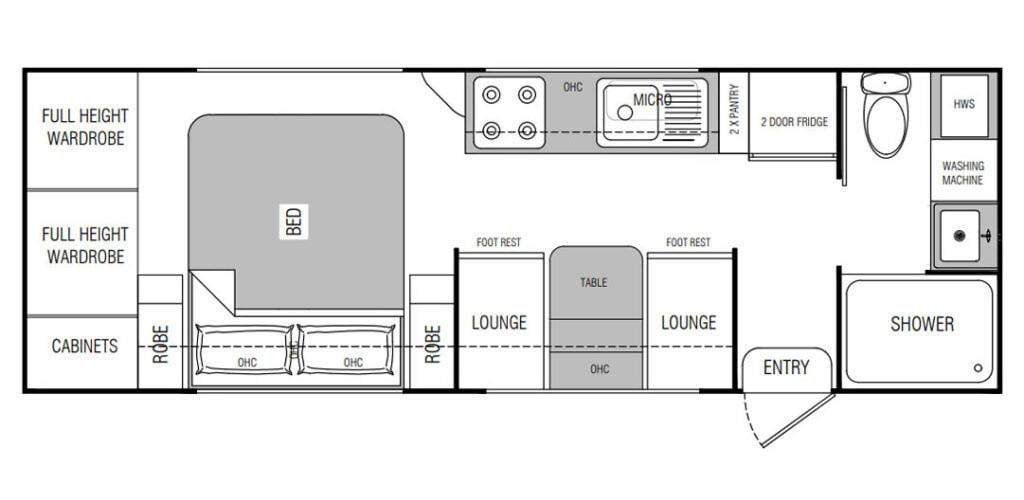

: 22′ 6″ East West Bed Type A

Single Axle Model

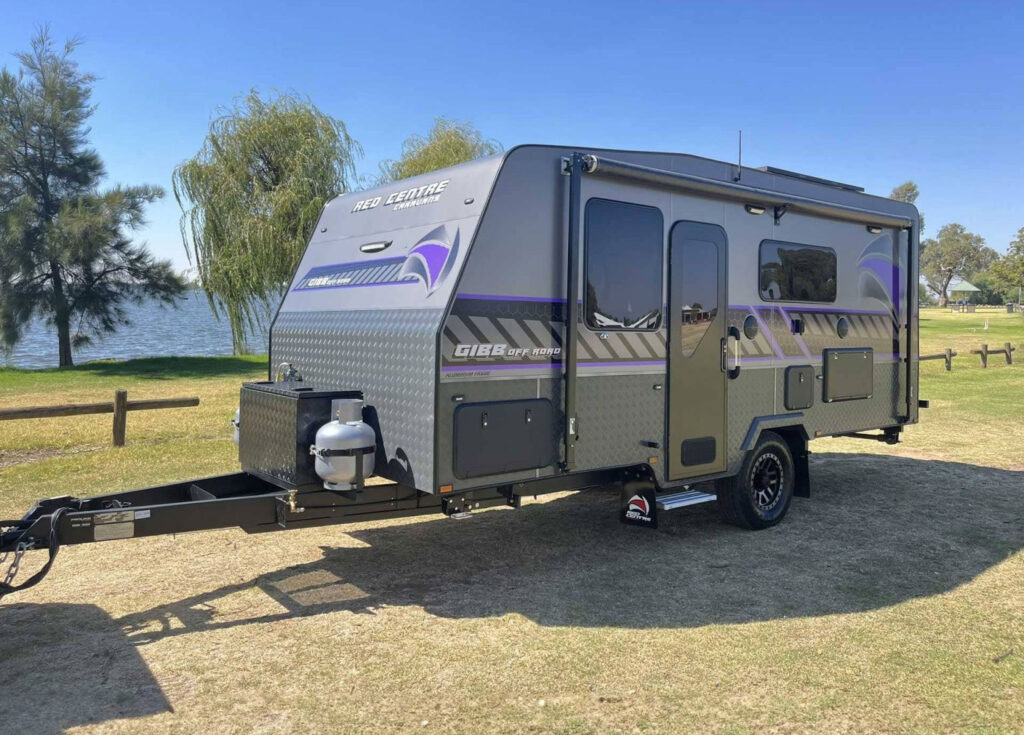

Gibb Off-Road

The Gibb Single Axle Off-Road Caravan is hailed as the best single-axle caravan for those who seek adventure without limits. Its construction prioritises off-road capability without sacrificing the luxury and comfort of a high-end mobile home, featuring an advanced Victron micro touch battery management system for unparalleled energy efficiency.

Price from $129,000

Fitout
Electrical
Plumbing
Chassis

- AM/FM radio
- 2 x internal speakers & 2 x external speakers
- 24 inch TV
- Rollout awning
- Double glazed windows
- Roof hatches with inbuilt LED lights
- Security screen mesh door
- Adjustable external hatches
- Picnic table
- CNC cut interlocking furniture
- Ball bearing drawer slides with soft close feature
- Gas struts on all overhead cupboard doors
- Oversize drawer and cupboard faces
- Post form rolled edge bench tops
- Full height splashback
- Pillowtop innerspring mattress
- Full ensuite
- Ceramic toilet bowl
- Ceramic hand basin
- Stainless steel sink
- Flick mixer taps
- Café, L shaped or club lounge configurations available for seating area
- Footrests on couch
- Linen cupboard
- Large 2 door, 3 way fridge freezer
- Gas / electric hot water unit
- 12V rangehood
- 3 x gas and 1 x electric cooktop
- Mini grill
- Full gas oven
- Microwave
- Top load washing machine
- Reverse cycle air conditioner
- 2 x 9 kg gas bottles
- External gas bayonet
- Reverse camera

Victron Battery Management System
2 x 200w solar panel
1 x 200 a/hr Lithium battery
Battery mounted on the chassis
30amp MPPT solar controller
30amp battery charger
LED lighting inside and out
LED taillights
LED external grab handle
Reading lights throughout van
12V USB sockets either side of bed and at dining table
Double power points throughout
Digital water tank displays
1 x Grey Anderson plug
1 x Red Anderson plug
External 240V outlet
External 12V outlet
External TV bracket & aerial point
TV antenna

2 x 95 litre water tanks
1 x 95 litre grey
Tap on A Frame (fully protected)
Mains pressure inlet with limiting valve
Manifold water filter system
12V pump

100% Australian designed and engineered chassis using Australian steel
6 inch drawbar
4 inch main chassis
2 inch riser
Fully independent 3T dual shock suspension with 12″ brakes
DO35 off road coupling
All terrain tyres
Ball coupling
ALKO ESC (Electronic Stability Control)
Breakaway system
12 pin flat trailer plug
Jockey wheel
2 arm rear bar
4 x drop down legs
Protection for water tanks
Mesh in A Frame
Aluminium Framing
Alucomp sides, front and rear (Hail resistant)
Checkerplate lower sides and front
Full composite panel 1 piece roof (Hail resistant, rot proof)
Full composite insulated floor
Fully insulated walls

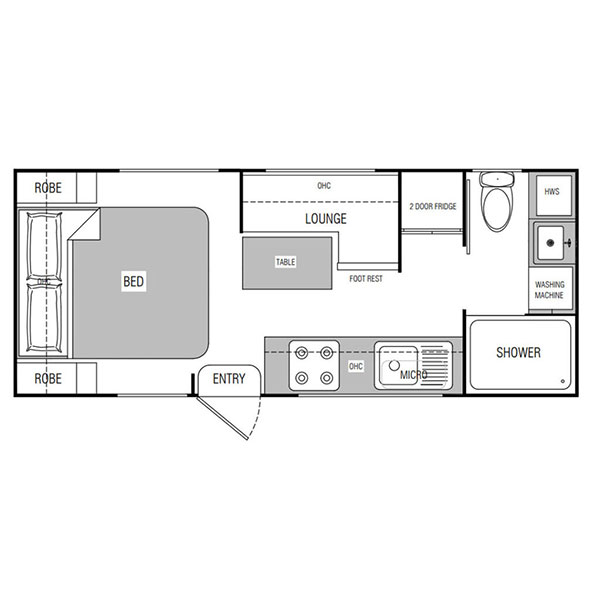

Single Axle Layouts

Standard

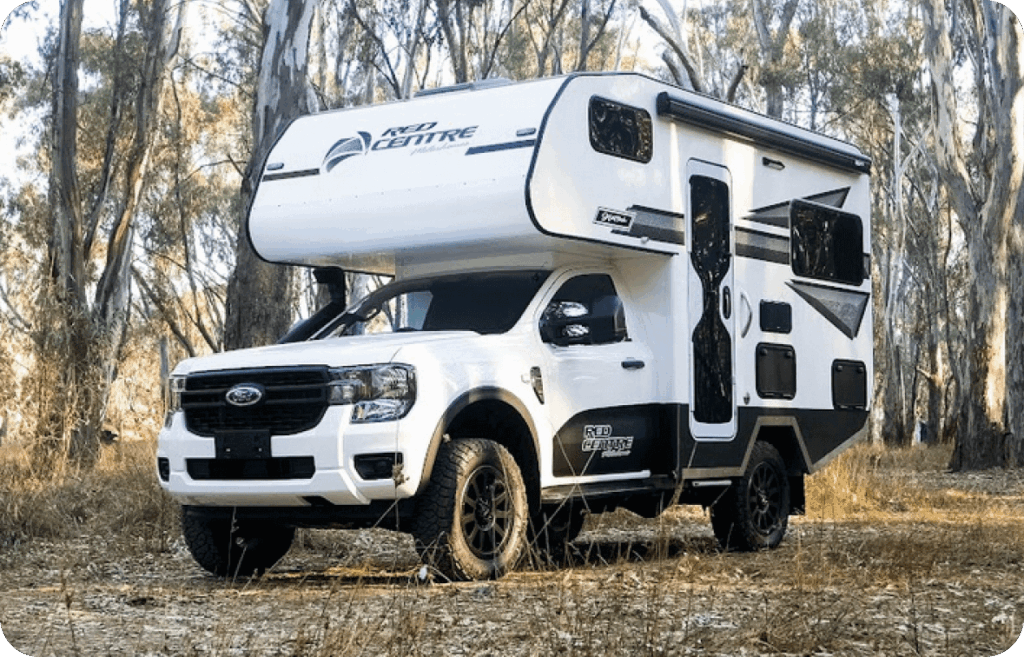

Hattah Ford Ranger Motorhome

The Hattah is recognised as a pioneering luxury Ford Ranger motorhome for adventurers who demand both off-road robustness and in-home luxury. With a foundation built on the current model Ford Ranger 4×4 XL with a 2.0 Bi-Turbo Engine, this motorhome seamlessly integrates off-road capability with comfortable living spaces, ensuring an unparalleled adventure experience.

Price from $275,000

Fitout
Electrical
Plumbing
Chassis

Full composite monocoque construction including floor with superior insulation properties
All internal furniture is constructed with aluminium framework which is CNC routed and riveted
Raptor coating on sides for extra protection
CNC furniture
Toilet-Shower Combo with large shower floor
Marine carpeted tunnel boot
3M external awning
Double glazed windows and roof skylights
Post form rolled edge benchtops
Re-Creation Plush 125mm pocket-spring mattress
Stainless steel sink
Sirocco fan

360AH of Lithium batteries
630w of lightweight thin-film flexible solar panels
3000w Redarc Inverter
Red Arc RedVision Battery Management System with Internal and External Screens
Fusion sound system with internal & external speakers

130 litres fresh water
70 litres grey water
12V pump with filter
External shower (Optional)
3 way valve to draw from external water source (Optional)

Current model Ford Ranger 4×4 XL 2.0 Bi-Turbo Engine – Single Cab Chassis
ARB GVM upgrade 3650KG with adjustable shocks
Rear Axle Capacity 2100KG
Front Axle Capacity 1640KG
GCM 6350KG
650KG Payload
Rugged terrain tyres
Alloy Wheels
Brown Davis 160L Steel long-range tank
Safari Snorkel
UHF
Side Steps
Rear View Reversing Mirror
Clearview Extendable Side Mirrors

BUILT STRONG

FINISHED BEAUTIFULLY

From heavy-duty construction and independent suspension to superior insulation and build quality, every Red Centre Caravan is engineered for durability, stability, and comfort.

Enter your details to receive a printable brochure

Red Centre Caravans

Designed for off-road adventures, Red Centre Caravans have tough frames and a tougher warranty. With a 10 year structural and 2 year general warranty. Red Centre Caravans are pushed to the limit on the Australian Gibb River & Cape York, design to perform and be truly fit for purpose.
